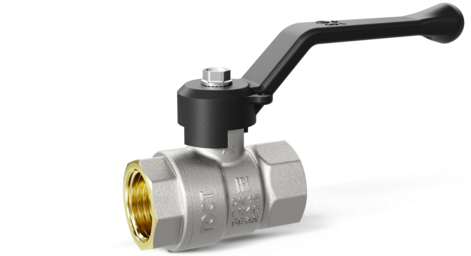

LD Pride. Brass ball valve Female/Female PN 25 Lever handle

Key specifications
Connection: Thread
Country of Origin: Russia
Handle color: Black
Leakage rate (EN 12266-1): A
Operation: Lever
Processing medium: Liquid
Service life: 30 years
Thread type: Female
Trademark: LD
Warranty: 10 years
MTBF: 10000 cycles
Nominal Diameter, DN: 25
Nominal Pressure, MPa: 4.0
Product line: LD Pride

Materials specification
Handle material: Aluminium alloy (AK7)
Pressure nut material: Brass LS59-1
Stem shell seal material: PTFE
Body material: Brass LS59-1
Seat material: PTFE

Dimension and logistics
Length, mm: 64
Order quantity: 8
Unit of measurement: pcs
Volume, m³: 0.00029
Weight, kg: 0.392
