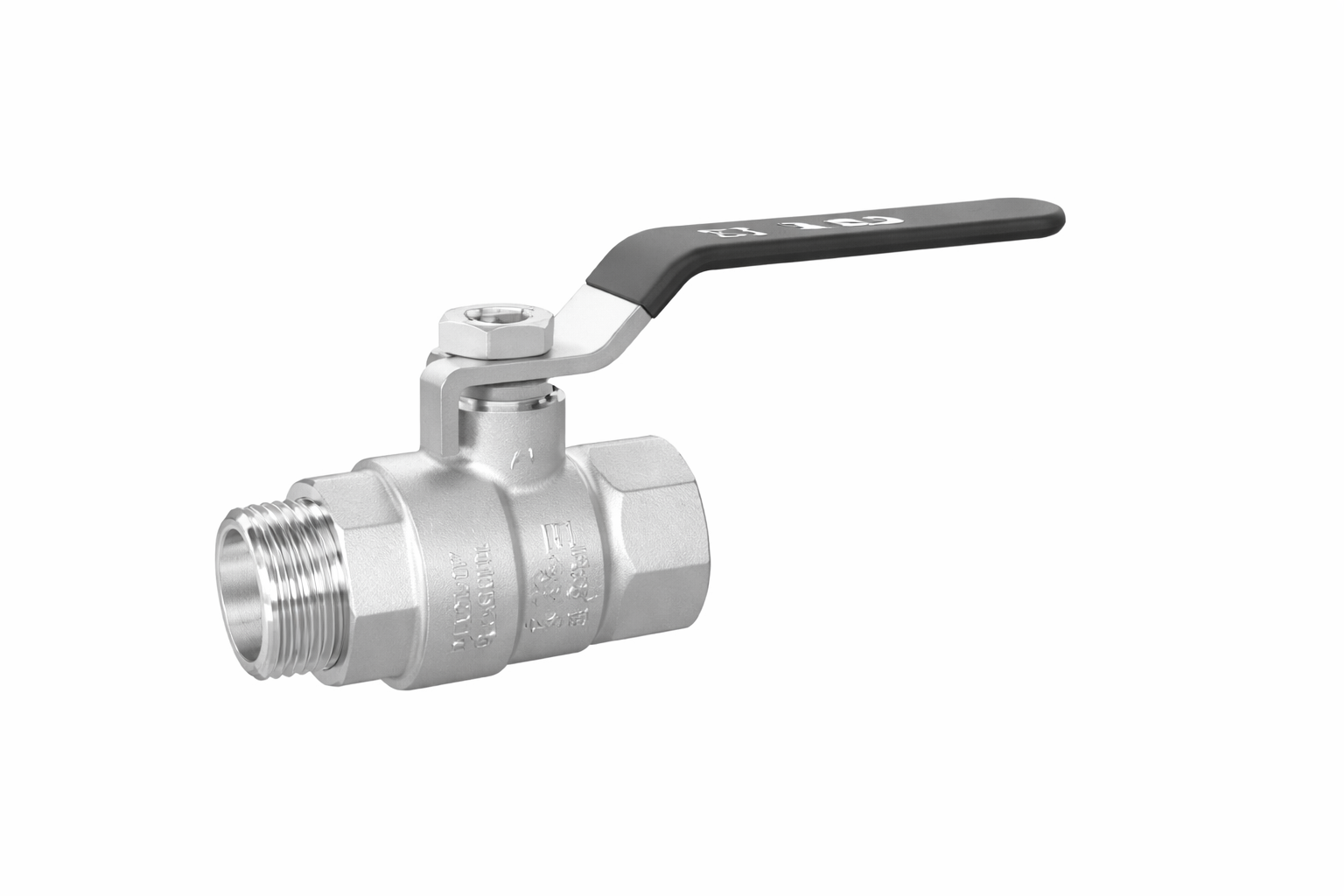

LD Pride. Brass ball valve Female/Male PN 25 Steel Lever handle

Key specifications
Connection: Thread
Country of Origin: Russia
Handle color: Black
Leakage rate (EN 12266-1): A
Operation: Lever
Processing medium: Liquid
Replaced by: LD 47.123.1.32.M02
Service life: 30 years
Thread type: Female/Male
Trademark: LD
Warranty: 10 years
MTBF: 4000 cycles
Nominal Diameter, DN: 32
Nominal Pressure, MPa: 2.5
Product line: LD Pride

Materials specification
Handle material: Steel nickel-plated
Pressure nut material: Brass LS59-1
Stem shell seal material: PTFE
Body material: Brass LS59-1
Seat material: PTFE

Dimension and logistics
Length, mm: 83.5
Order quantity: 4
Unit of measurement: pcs
Weight, kg: 0.64
