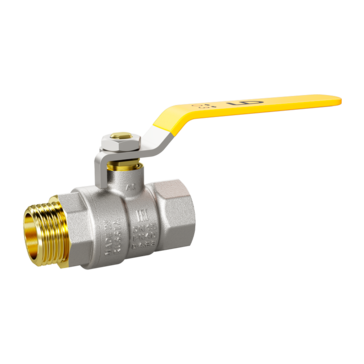

LD Pride GAS Brass ball valve Female/Male PN 40 Steel Lever handle

Key specifications
Connection: Thread
Country of Origin: Russia
Handle color: Yellow
Leakage rate (EN 12266-1): A
Operation: Lever
Processing medium: Gas
Service life: 30 years
Thread type: Female/Male
Trademark: LD
Warranty: 10 years
MTBF: 10,000 cycles
Nominal Diameter, DN: 20
Nominal Pressure, MPa: 4.0
Product line: LD Pride

Materials specification
Handle material: Aluminium alloy
Pressure nut material: Brass LS59-1
Stem shell seal material: PTFE
Body material: Brass LS59-1
Seat material: PTFE

Dimension and logistics
Length, mm: 63
Order quantity: 12
Unit of measurement: pcs
Weight, kg: 0.265
