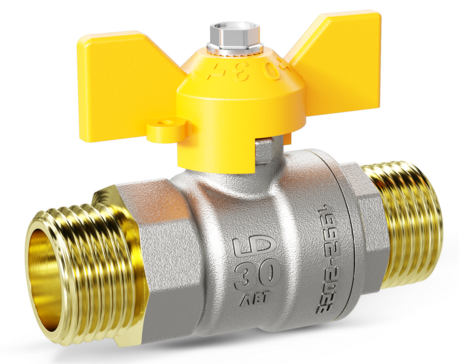

LD Pride GAS Brass ball valve Male/Male PN 40 T-handle

Key specifications
Connection: Thread
Country of Origin: Russia
Handle color: Yellow
Leakage rate (EN 12266-1): A
Operation: Butterfly
Processing medium: Gas
Service life: 30 years
Thread type: Male
Trademark: LD
Warranty: 10 years
MTBF: 10,000 cycles
Nominal Diameter, DN: 15
Nominal Pressure, MPa: 4.0
Product line: LD Pride

Materials specification
Handle material: Aluminium alloy
Pressure nut material: Brass LS59-1
Stem shell seal material: PTFE
Body material: Brass LS59-1
Seat material: PTFE

Dimension and logistics
Length, mm: 65.5
Order quantity: 20
Unit of measurement: pcs
Volume, m³: 0.000116
Weight, kg: 0.184
